Motherboard Recommendations for Ryzen 7 5700G

ASUS TUF X570-Plus Wi-Fi

The ASUS TUF X570-Plus Wi-Fi is a great and popular choice for the Ryzen 5000 series CPUs and will be a great motherboard to pair with the Ryzen 7 5700G. It has an overall black theme with yellow ASUS TUF accents and RGB lighting at the edge and a TUF GAMING logo at its massive heatsink.

This motherboard also brings PCIe 4.0×16 support for graphics cards and comes with a 6-layer PCB and 12+2 Dr. MOS power phase design rated at 50A which makes it great for overclocking and Digi+VRM for maximum durability and performance.

For memory, it has four DIMM slots with support for up to 128GB of memory and speeds up to 5100MHz when overclocked. It also has multi-GPU support with AMD CrossFire. For storage, it comes with two M.2 slots and eight SATA ports which is plenty of storage options but we would’ve liked to see at least three M.2 slots. Coming to audio, it uses the Realtek ALCS1200A 8-channel audio codec with DTS custom support as well as Wi-Fi 5 and Bluetooth 5.0 for wireless connectivity.

Talking of ports, it has a total of thirteen USB ports. It has four rear USB 3.2 Gen 1 ports, and three rear USB 3.2 Gen 2 ports while the rest are USB 2.0. Although we’d like to see a USB 3.2 Gen2 port for the front panel, unfortunately, it only supports USB 3.2 Gen1. There is only one addressable Gen 2 header for RGB and two RGB headers. There are also six fan headers placed around the motherboard which is sufficient to connect all the fans you need.

It also has a lot of ASUS proprietary features such as SafeSlot PCIe slot which provides retention and shearing resistance due to extra solder points. It also has a lot of ESD guards that protect the motherboard from electrostatic discharge. Unfortunately, this motherboard does not have any onboard buttons such as the BIOS reset button. It also has a debug LED which is usually not found on entry-level boards.

Overall, this motherboard has all the necessary things you need and has great overclocking performance at a very competitive price point which makes it a great choice to pair with the Ryzen 7 5700G.

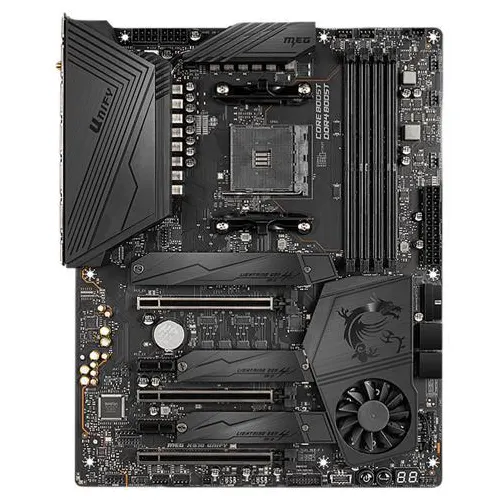

MSI Meg X570 Unify

The MSI MEG X570 Unify is one of the sleekest fully black motherboards which no one can dislike. It is a full-ATX motherboard for the Ryzen 5000 CPUs and is a popular choice for those who want performance, features, and aesthetics. It is made with a 6-layer server-grade PCB with a large MOSFET heat sink and comes with three full PCIe slots which support PCIe 4.0 and 3.0 and have nice features such as onboard power and reset buttons.

The MSI MEG X570 Unify motherboard features a 12+2 phase power delivery VRM design with 60A power stages which is extremely capable of overclocking. The motherboard also features a dual 8-pin EPS connector and an extended all-metal heat sink that provides good heat dissipation to ensure high-end processors can run at max potential.

The design of this motherboard is well thought out with fan headers cleverly located to allow a less cluttered PC build. It also features a 4 EZ Debug LED for troubleshooting any issues. It comes with four DDR4 memory slots with support for up to 128GB RAM with speeds up to 5000+MHz in OC mode. This motherboard also supports multi-GPU technology such as Nvidia SLI and AMD CrossFire. The PCIe slots are also strengthened with PCIe Steel Armor which prevents bending or shearing of the slot due to heavy graphics cards.

Storage-wise, it’s kind of lackluster with only two M.2 slots and four SATA ports. The M.2 SSD slots feature MSI’s Frozr heatsink design which is aluminum and aids in heat dissipation. Out of the box, it comes with four SATA cables which are nice to see as most manufacturers provide usually two cables only.

Coming to the USB ports, it’s good to see that it comes with a mixture of USB 3.2 Gen 2, Gen 1 and USB 2.0 ports. It also comes with a clear CMOS button, BIOS flash button as well as the old PS/2 port for old peripherals. There is also a single USB 3.2 Gen 2 Type-C port. It also features the Realtek 2.5G LAN and ALC1220 codec along with Wi-Fi6E and Bluetooth 5.2. Overall, it’s a great-looking and performing motherboard to pair with the Ryzen 7 5700G.

MSI MAG X570 TOMAHAWK Wi-Fi

The MSI MAG X570 Tomahawk WiFi is possibly the best X570 ATX form-factor motherboard for the Ryzen 7 5700G with a lot of features. Here’s why.

Like all MSI Tomahawk motherboards, the design does not disappoint. It has a beautiful black finish and keeps an overall clean and sleek design. This motherboard comes with MSI’s beefy Frozr heatsink design which includes its patented fan and double ball bearings to ensure maximum performance while keeping it cool.

The PCIe slot is also enforced with PCIe Steel Armor to endure the weight of heavy graphics cards, prevent bending, and protect from electromagnetic interference. This ensures better system performance and stability. It supports PCIe 4.0×16 and also has two M.2 slots that support PCIe 4.0×4. The M.2 slots are also covered by M.2 Shield Frozr which keeps your NVMes cool and running at full potential and stability.

It comes with a total of four DDR4 memory slots which support up to 128GB of RAM with speeds of up to 4600MHz when overclocked. Performance-wise, it is one of the most impressive motherboards with great VRM thermals for the best bang for your buck.

For the users who love to fill their PCs with RGB, you will find two addressable RGB headers as well as two RGB connectors which is plenty. It also comes with EZ Debug LEDs for troubleshooting if you run into any issues. A flash BIOS button is also present if you need to upgrade the BIOS without the need for a CPU.

Connectivity-wise, it comes with a total of thirteen USB ports for the rear and back, six in the rear, and seven through internal USB connectors. There are three USB 3.2 Gen2, and four USB 3.2 Gen1, while the rest are USB 2.0. Storage-wise, you get a total of six SATA ports which is plenty to connect your drives. For networks, it comes with a Realtek 2.5 Gbps LAN, Wi-Fi 6 AX200, and Bluetooth 5.2.

In the audio department, it comes with Realtek ALC1200 codec with 7.1 channel audio which is pretty decent. However, do note that fan headers are poorly placed which makes it harder to route the fans when building.

Wrapping it up, the MSI MAG X570 Tomahawk Wi-Fi is a great motherboard choice to pair with the Ryzen 7 5700G.

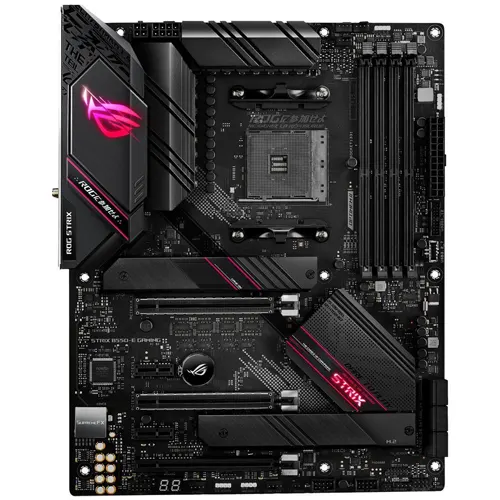

ASUS ROG Strix B550-E

The ASUS ROG Strix B550E sports a black-themed PCB coupled with matt black components and heatsinks with colorful lines running through them. The motherboard itself has an ATX form factor measuring 12 inches x 9.6 inches, making it appropriate for ATX-sized builds and allowing the user to show off the aesthetics of their motherboard and the attached components. It has support for RGB in order to satisfy your need for the RGB bling as it features dual standard RGB headers as well as dual addressable RGB headers, providing you with the ability to customize the RGB of your motherboard and match it with the rest of your build.

The ASUS ROG Strix B550 E utilizes the AMD B550 chipset which supports AMD’s AM4 socket, making it compatible with AMD’s Ryzen 5000 series, allowing the motherboard to be paired with AMD’s Ryzen 5700G with no issues at all. The board itself has four memory DIMMS that can accommodate a total of 128GB ram of DDR4 at a memory frequency of 4866MHz (OC) with support for dual channels. In terms of utilizing a dedicated graphics card, the board has 2x PCIe 4.0 16x slots which can utilize the complete potential of any dedicated graphics card.

The board is powered by a single 24-pin ATX power connector as well as a single 8-pin ATX power connector combined with a 4-pin ATX power connector that is used to power the CPU itself and allow for potential overclocking. The board has a 14+2 power stage delivery system which ensures a steady supply of power and allows enthusiasts to overclock their processors to squeeze more juice out of them. In terms of M.2, the ASUS ROG Strix B550E is equipped with dual M.2 sockets with support for PCIe 4.0 x4 as well as PCIe 3.0 X4 and SATA modes as well, allowing you to utilize high-speed SSDs.

The board also has a single Display HDMI 2.1 port which can utilize onboard graphics to provide a maximum resolution of around 4K at 120Hz as well as a single DisplayPort 1.2. In order to provide you with a seamless and lag-free gaming session, the board comes equipped with an Intel I225-V 2.5Gb Ethernet port as well as Intel’s WIFI6 AX200 chipset which can provide wireless connectivity and supports dual-band frequency (2.4GHz & 5 GHz).

Gigabyte X570 Aorus Xtreme

The Gigabyte X570 AORUS Xtreme has a beautiful matt-black theme across the board with AORUS branding as well as the AORUS falcon over the rear IO side with a sprinkle of RGB. The board looks very neat aesthetically, allowing it to complement a build designed with the color black in mind. In order to spice up the aesthetics, the motherboard additionally comes with dual addressable RGB headers as well as dual RGB headers and RGB fan commander, as part of the Gigabyte’s RGB Fusion 2.0, providing a lot of customizability when it comes to the RGB bling. The board itself has excellent thermals as it has a Nanocarbon baseplate and also features three enlarged heatsinks for the M.2 slots that are running at PCIe 4.0/3.0 at x4 speeds.

The Gigabyte X570 AORUS Xtreme is based on the X570 chipset which supports AMD’s AM4 socket, allowing it to be compatible with Ryzen 5000 series processors, making it an ideal candidate for AMD’s Ryzen 5700G processor. The board is structured around the  E-ATX form factor which might be a concern for some users as they may feel that the form factor will limit their choices due to limited choices in PC cases.

Taking a look over the board design, it is clear that a 16-phase power design has been incorporated to ensure a smooth and steady supply of power throughout the motherboard and allow overclocking enthusiasts to push their CPUs even further. The board itself is powered by a 24-pin ATX power connector coupled with dual 8+8-ATX pin power connectors that are used to power the CPU and allow additional headroom for overclocking.

The board has four memory DIMMS which can accommodate a total of 128GB of DDR4 memory with a memory frequency of 4400MHz (OC) with support for dual channel memory as well as  Intel’s Extreme Memory Profile (XMP). In terms of powering a dedicated graphics card, the board comes with a single PCIe 4.0 x16 slot as well as an additional PCIe 4.0 X8 slot that can run a dedicated graphics card. In terms of connectivity, the board has a WIFI 802.11 AX chipset with support for dual channel bands (2.4GHz & 5GHz) as well as a Gigabit Ethernet port for wired connection. Overall, the Gigabyte X570 AORUS Extreme is a premium board loaded with features for AMD’s Ryzen 5700G processor.

Gigabyte X570 Aorus Ultra

Taking a look at the Gigabyte X570 AORUS Ultra, we can see that it has an 8-layered matte-black PCB with subtle gray pattern accents across some of the heatsinks alongside AORUS’s branding on the rear IO side and the AORUS falcon itself. The motherboard is equipped with dual RGB LED strip headers as well as dual addressable RGB strip headers in order to satisfy your thirst for RGB bling. The motherboard itself has an ATX form factor which makes it appropriate for PC builds with a roomy ATX PC case. The Gigabyte X570 AORUS Ultra is based on the X570 chipset which has support for AMD’s AM4 socket, making it compatible with AMD’s Ryzen 5000 series processors, allowing users to pair AMD’s Ryzen 5700G processor with ease.

Coming towards the technical specifications of the board, the board features a 14-phase power design which ensures a smooth flow of power and allows enthusiast overclockers to safely overclock their CPUs and push them to their full potential. The board itself is powered by a 24-pin ATX power connector as well as a single 8-pin ATX power coupled with a 4-pin ATX power connector which is utilized to power the CPU itself and provide headroom for overclocking.

The board has four memory DIMMS incorporated which can accommodate a total of 128GB of DDR4 memory with a maximum memory frequency of 4400MHz (OC) with support for dual channels and Intel’s Extreme Memory Profile (XMP). In order to utilize a dedicated graphics card, it has a single PCIe 4.0 x16 slot with another PCIe 4.0 X8 slot. The Gigabyte X570 AORUS Ultra also has a decent onboard audio solution as it is utilizing the Realtek ALC 1220-VB audio chipset which provides a crystal clear and an immersive audio experience with support for up to 7.1 audio channels. For LAN and online connectivity, the board has Intel’s Gbe RJ-45 ethernet port alongside a WIFI 802.11 AX chip which can provide wireless connectivity over dual bands (2.4GHz & 5GHz).

In order to utilize the high-speed SSDs to their maximum potential, the board has dual M.2 slots running at PCIe 4.0/3.0 X4 with an additional 6 x SATA ports for SATA SSDs or hard drives. In conclusion, the Gigabyte X570 AORUS Ultra is loaded with features and should be a perfect pick for AMD’s Ryzen 5700G processor.
