Best Motherboard for RTX 4070

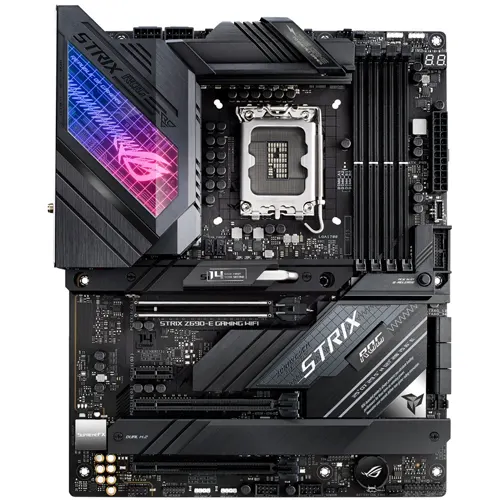

ASUS ROG Strix Z690-E Gaming WiFi

The ASUS ROG Strix Z690-E Gaming WiFi sports a beautiful matt-black theme across the board with patterned dark-gray shades over some of the components and heatsinks followed by the STRIX branding engraved on top of them. It has a few RGB elements of the ROG branding over the rear IO location and features beefy enlarged VRM heatsinks throughout the board which do a pretty good job of keeping the motherboard thermals cool.

The board itself is based on the Z690 chipset which supports Intel’s socket LGA1700 which makes it compatible with the 12th and 13th generation of Intel processors, allowing you to pair and utilize powerful next-generation processors which can harness the full potential of your Nvidia RTX 4070 graphic card. In terms of size, the board sports an ATX form factor which makes it suitable for large ATX PC builds. The board receives power through the 24-pin ATX power connector along with 8+8-pin ATX power connectors which are used to power the processor itself and provide enough juice for anyone looking to potentially overclock their processors for an added performance boost. It boasts a 19-phase power stage delivery design with 90-Amps dedicated to the Vcore, allowing for some serious overclocking potential and ensuring that beefy and power-hungry processors can be paired with the motherboard without any hassle at all.

In terms of ports, the board has incorporated four memory DIMM slots which can accommodate a total of 128GB of DDR4 memory at a memory peak frequency of 6400MHz (OC) with support for the dual channel and Intel’s Extreme Memory Profile (XMP). The board also features a single PCIe 5.0 X16 slot which can be utilized by your Nvidia RTX 4070 graphic card to exchange data and bandwidth between other components at a very high and optimal rate, allowing the motherboard to harness all available bandwidth and power from your dedicated graphic card. The board also supports up to three M.2 slots in PCIe 5.0  x4 mode, allowing you to pair powerful and fast SSDs for your system.

In conclusion, the ROG Strix 690-E Gaming Wi-Fi has loaded with premium features that truly make it an excellent pick for Nvidia’s RTX 4070 coupled with the added benefit of Wireless connectivity too.

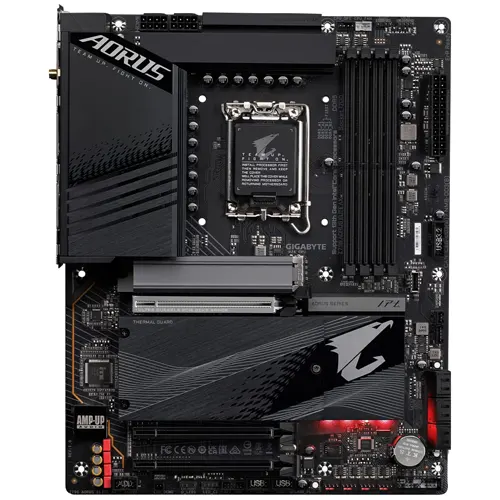

GIGABYTE Z790 AORUS Elite AX

The Z790 AORUS Elite AX is a rather simple-looking motherboard that sports a matt-black theme throughout the PCB with some of the components and heatsinks being boasted in a jet-black theme with gray patterned accents. To further complement the dark black theme of the board, the memory DIMMS are also covered in a dark jet-black color. In terms of size, the motherboard incorporates an ATX-form factor with the dimensions being 30.5cm x 24.4cm, making it an ideal motherboard for PC builds that are built in an ATX casing.

The Z790 AORUS Elite AX is based on Intel’s Z790 chipset which supports Intel’s LGA1700 socket, making it compatible with the 12th and 13th generation of Intel processors. The board draws power from a 24-pin ATX power connector alongside dual 8+8-pin ATX power connectors that are used to power the processor and provide sufficient juice for overclocking potential. It has a 16+1+2 Hybrid Digital VRM Design with a total of 70-Amps dedicated to the Vcore, allowing for consistent and smooth power which can also be utilized by the overclocking enthusiasts to push their processors even further in terms of performance.

Upon taking a closer look at the motherboard, we can see that there are four black memory DIMM slots that can accommodate a total of 192GB of DDR5 memory at a peak memory frequency of 7600MHz (OC) with support for dual channel support and Intel’s Extreme Memory Profile (XMP). For your dedicated graphic card, the board features a PCIe 5.0 X16 slot which can allow for far greater transfer of bandwidth and data between the graphic card as well as the different components and hardware in the motherboard.

The PCIe 5.0 x16 slot will be able to harness the complete potential of graphic cards such as Nvidia’s RTX 4070 and allow the graphic card to perform at its maximum performance level. The board comes with a whopping four M.2 connectors at PCIe 4.0 x4 speed which provides a user with the capability to pair multiple fast SSDs. Additionally, it has Intel’s Wi-Fi 6E AX211 chipset which provides wireless connectivity as well as a Gigabit RJ-45 ethernet port.

The Z790 AORUS Elite AX with its PCIe 5.0 X16 slot as well as wireless capabilities makes it an excellent choice to be paired with Nvidia’s RTX 4070.

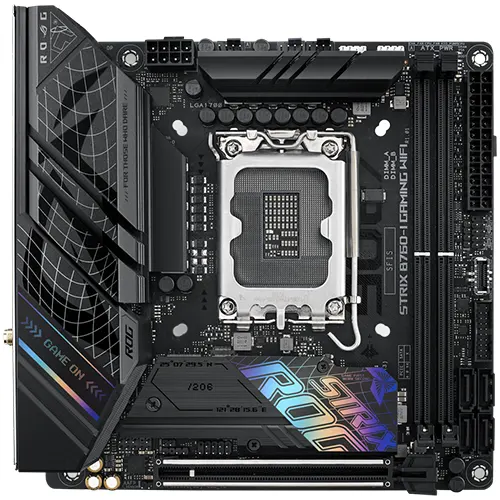

ASUS ROG Strix B760-I Gaming WiFi

The ASUS ROG Strix B760-I Gaming Wi-Fi rocks a colorful black theme as the board features a matt-black theme coupled with patterned gray accents over heatsinks towards the rear IO. Colorful STRIX ROG branding in different unique colors can be seen in different locations on the motherboard, making the motherboard itself unique in terms of aesthetics when compared to other dark-themed motherboards. In terms of size, the motherboard has incorporated a Mini-ITX form factor which makes it suitable for compact PC builds that are designed around Mini-ITX cases. Some of the users may find the Mini-ITX form factor as a limiting feature of the motherboard as these form factors usually have fewer features and ports as compared to Micro-ATX and ATX motherboards.

The ASUS ROG Strix B760-I is based around the B760 chipset which supports Intel’s LGA1700 socket which makes it compatible with 12th and 13th generation of Intel processors. The board receives its power from a single 24-pin ATX power connector as well as a single 8-pin ATX power connector which is used to power the processor. Although, as the motherboard only has a single 8-pin ATX power connector which is used to power the processor, it does not allow the motherboard to overclock the processor or provide such capabilities as it only features an 8+1 power stage design which cannot provide consistent or enough power for overclocking the processor.

Taking a closer look at the motherboard, it has two jet-black memory DIMMS which can accommodate a total of 96GB of memory with a peak memory frequency of 7600MHz (OC) with support for the dual channel as well as Intel’s Extreme Memory Profile (XMP). The board has incorporated a single PCIe 5.0 X16 slot to harness the full potential of your graphic card such as the Nvidia RTX 4070 and allow the graphic card to perform at its maximum performance level. Additionally, it features two M.2 slots and provides a Wi-Fi 6E chipset for wireless connectivity and a Gigabit RJ-45 port for ethernet connectivity.

Overall, the ROG Strix 760-I Gaming Wi-Fi is one of the perfect motherboards which can be paired with Nvidia’s RTX 4070 within budget-oriented and compact builds.

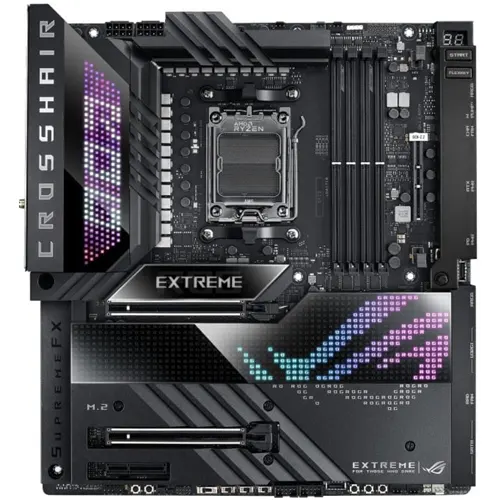

ASUS ROG X670E Crosshair Extreme

The aesthetics of the ASUS ROG X670E Crosshair Extreme sport a dark gray theme throughout the board with black memory DIMM slots. It also has a large crosshair branding towards the rear IO plate covers and on top of some of the VRM heatsinks. The aesthetics of the board are truly unique as it features an incredible OLED screen display on the motherboard itself with ROG stylized branding over it. In terms of the size, the motherboard incorporates an E-ATX form factor with the dimensions being 30.5 cm x 27.7cm. Users that may be looking for RGB bling will be thrilled to know that it features support for three addressable RGB headers as well as a single Aura RGB header which provides a user with sufficient customizability in terms of RGB.

The ASUS ROG X670E Crosshair Extreme is based on the X670 chipset which supports AMD’s AM5 socket, making it compatible with the AMD Ryzen 7000 series processors. The board is powered by a single 24-pin ATX power connector as well as dual 8+8-pin ATX power connectors providing sufficient power to the processor, and allowing enthusiasts to take their processors a step further by overclocking it.

In terms of ports, the board features dual PCIe 5.0 X16 slots which can truly harness the full potential of your graphic card such as Nvidia’s RTX 4070. When looking over towards the black memory DIMMS, we can see that the board features four jet-black memory DIMM slots which can accommodate a total of 128GB of DDR5 memory with a max memory frequency potential of 6400MHz (OC) with support for dual channels as well as Intel’s Extreme Memory Profile (XMP).

The board does not compromise when it comes to onboard audio solutions and audio enthusiasts will be thrilled to find that the board has incorporated ROG’s SupremeFX 7.1 surround sound high-definition audio codec ALC4082 with a signal-to-noise (SNR) ratio of 120dB coupled with premium audio capacitors and LED illuminated audio jacks. When it comes to online connectivity or local area network (LAN) connectivity, the board features a 2.5Gb ethernet port as well as WI-FI 6E with support for 6GHz band and Bluetooth 5.3, providing a seamless and uninterrupted browsing and gaming experience. In conclusion, it is an excellent purchase that can be paired with Nvidia’s RTX 4070 graphic card.

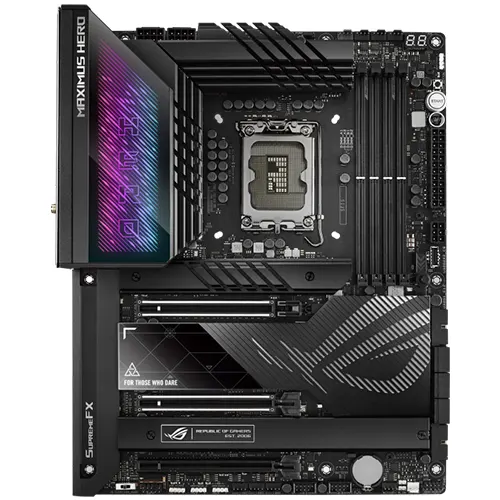

ASUS ROG Maximus Z790 Hero

The ASUS ROG Maximus Z790 Hero sports a dark-gray theme throughout the PCB with black memory DIMM slots and patterned white accents throughout the heatsinks as well as the ROG branding over them. It has a bit of RGB which is incorporated within the HERO branding of the motherboard towards the rear IO side of the motherboard. Speaking of the size of the motherboard, the motherboard boasts an ATX-form factor which makes it an ideal motherboard for ATX-sized PC builds. Users or gamers that are looking to add a sprinkle of RGB to their PC builds can now rejoice as the board has 3x aRGB-3 pin headers as well as a single 4-pin Aura RGB header, providing users with multiple options for RGB customizability and adding that RGB bling to their overall aesthetics of the build.

The board is based around the  Z790 chipset which supports Intel’s LGA1700 socket, making it compatible with Intel’s 12th and 13th generation of processors. The board draws power from a single 24-pin ATX power connector as well as dual 8-pin ATX power connectors that are utilized to power the processor and allow for overclocking capabilities. Overclocking the processor on the motherboard should be a piece of cake as the board sports a beefy 21-phase power stage design with up to 90-Amps dedicated to the Vcore, allowing the board to power or overclock any of Intel’s flagship processors without breaking a sweat.

In terms of ports, the board has four memory DIMMS that can accommodate a total of 192GB of DDR5 ram at 7800MHz (OC) with support for dual channels and Intel’s Extreme Memory Profile (XMP). In order to power the next generation of graphic cards such as Nvidia’s RTX 3070, the board is equipped with dual PCIe 5.0 x16 slots which can harness the full power of the graphic card, allowing it to perform at its maximum performance level thanks to the increased flow of bandwidth from PCIe 5.0 x16 slot. The board has a Gigabit ethernet port as well as WI-FI 6E for wireless connectivity and additionally features premium onboard audio solutions. The ASUS ROG Maximus Z790 is packed with premium features and makes for an excellent pick with Nvidia’s RTX 4070 graphic cards.

ASUS ROG Maximus Z690 Hero WiFi

The ASUS ROG Maximus Z690 is an excellent high-end motherboard for gamers and enthusiasts that strikes a great balance between its price, features, and aesthetics. This motherboard is designed for the latest Intel Core 12th and 13th generation processors which use the LGA 1700 socket. It has premium features such as a beefy 20+1 power stage rated for 90 amps which makes it an ideal motherboard for extreme overclocking. It is also designed with premium metallic capacitors and MicroFIne alloy chokes which overall provide a robust power solution.

It has a very premium and aesthetic design which is expected from the ASUS ROG lineup. It includes a ROG logo and a large IO shroud heatsink which lights up and employs ASUS’s polychrome lighting scheme which consists of RGB LEDs to produce lighting effects.

Taking a quick look at the networking and audio department, we can find a single 2.5G LAN as well as Wi-Fi 6E and Bluetooth 5.2. It uses a Realtek ALC4082 codec with ROG SUpremeFX 7.1 Surround Sound and gold-plated audio jacks. Coming to the thermal design, it is integrated with large VRM heatsinks, M.2 heatsinks, and aluminum IO along with the use of top-quality thermal pads to effectively cool the motherboard and other components.

Coming to connectivity options, it is packed with a whopping eleven rear USB ports, where two are Thunderbolt 4 and seven support USB 3.2 Gen 2 along with many more USB ports through internal connectors. That’s an impressive feature of high-speed USBs. As for storage,  it supports five M.2 slots and six SATA ports where one M.2 slot supports PCIe 5.0×4. The motherboard also comes with many fan headers along with three addressable RGB headers which will be more than enough for any RGB fan.

It also has special features such as ASUS Q-Design such as M.2 Q-Latch for toolless installation of M.2 and PCIe slot Q-Release which allows easy removal of graphics cards. Additional features such as the BIOS FlashBack button and clear CMOS button are also present in this motherboard.

To sum it up, the ASUS ROG Maximus Z690 Hero Wi-Fi is a splendid motherboard choice for your RTX 4070 build with all the best features while being fairly priced according to its extensive features.
