Best Motherboard for Ryzen 5 7600X

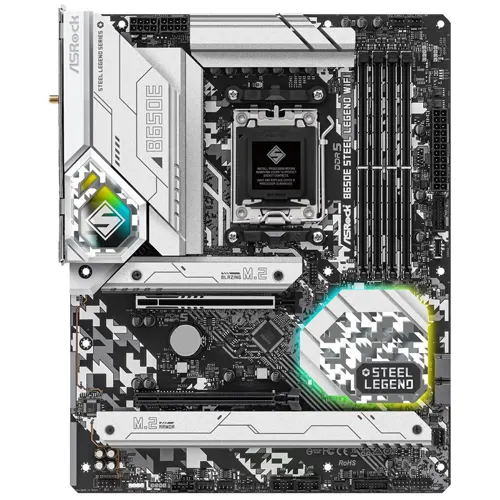

ASRock B650E Steel Legend WiFi

The ASRock B650E Steel Legend Wi-Fi motherboard features a white camouflage patterned theme with gray accents on the PCB itself and on other components. It has some of the RGB located near the location of the rear I/O as well as at the underside of the chipset heatsink itself. The board itself is an ATX form factor which makes it suitable for ATX cases and adds to the aesthetic of the build itself. It supports AMD’s AM5 socket which makes it an appropriate pick for AMD’s Ryzen 7600x processors lineup.

The board has a beefy power delivery design with headroom for overclocking the processor as it sports a 19-phase power design which allows for adequate overclocking. The motherboard comes with an integrated HDMI 2.1 port which can utilize onboard graphics to provide an appealing visual experience with up to 4K resolution. Additionally, the board features a single DisplayPort 1.4, 4x USB 3.2 Gen 1, 2x USB 2.0, 1x USB 3.2 Gen 2, and 1x USB 3.2 Gen 2 Type C.

The motherboard comes equipped with four memory DIMM slots which are reinforced and feature electrostatic discharge protection and support up to 128GB of DDR 5 memory up to a memory frequency of 6600 MHz. The board comes equipped with a PCIe 5.0 X16 slot for the main graphic card, allowing every inch of performance to be utilized from the graphic card. Additionally, it has a 3.0 PCIe X4 slot below the PCIe 5.0 X16 slot. The ASRock B650e Steel Legend also features an integrated Realtek Dragon RTL8125 gigabit ethernet controller which allows for blazing-fast speed and internet connectivity.

In terms of audio solution, it features the Realtek ALC897 chipset which will be appropriate for most of the basic audio requirements but certainly is a bit dated. The board has 3 x aRGB (3pin) connectors as well as a single RGB (4pin) connector to address your needs for RGB bling which adds to the aesthetics of your build. The board only has 2 SATA 3 ports but features a PCIe 5.0 x4 M.2 socket as well as two PCIe 4.0o X4 additional M.2 sockets which will provide high-speed performance and utilize the SSD to their maximum performance potential.

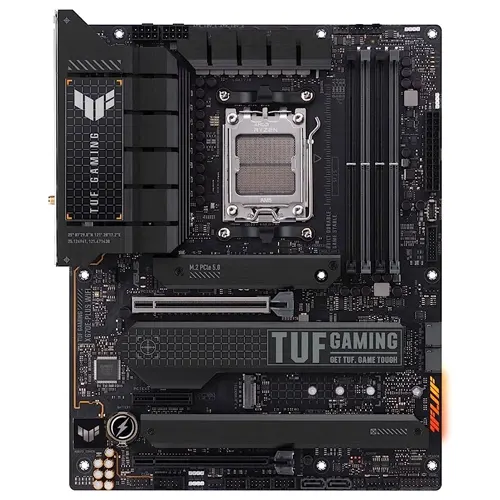

ASUS TUF Gaming X670E-Plus WiFi

The ASUS TUF Gaming X670E Plus Wi-Fi sports a jet-black theme across the entire PCB coupled with ASUS TUF Gaming branding across several places on the motherboard which might be distracting to some users or not aesthetically pleasing. The motherboard itself is an ATX form factor which makes it suitable for ATX-sized cases as they complement each other and allow the motherboard and its components to be shown off. It has support for the AMD AM5 socket which means that it is fully compatible with the Ryzen 7000 series processors. It features 4 memory DIMM slots which accommodate a total of 128GB of DDR5 memory with a memory frequency of up to 6400MHz with dual channel support.

The board features a 14+2 Teamed Power Stage design which allows for decent overclocking headroom for enthusiasts that may be interested in overclocking their CPU. The motherboard itself is powered by a 24-pin ATX power connector as well as two 8-pin EPS power connectors that power the CPU itself. The board comes equipped with a single PCIe 5.0 X16 slot which is used for the dedicated graphics card. Additionally, features another PCIe 4.0 X16 slot as well as another PCIe 4.0 x4 slot. The motherboard also features a single M.2 2280 PCIe 5.0 X4 slot, 2x M.2 2280 PCIe x4 slots, and additionally, an M.2 22110 PCIe 3.0 slot in order to utilize the full power of high-speed SSDs. Heatsinks are featured for two of the 3 M.2 slots covered in a jet-black theme as well.

The ASUS TUF Gaming X650E Plus Wi-Fi also features support for the latest generation of Wi-Fi6E which covers the 6GHz spectrum and provides blazing fast speeds when connected wirelessly. Additionally, it has a 2.5Gbps RJ-45 ethernet port which can provide a seamless online experience as well as a lag-free gaming experience thanks to a high-speed LAN connection. Equipped with Realtek 7.1 Surround sound with the S1220A codec which has a 120dB signal-to-noise (SNR) ratio for audio enthusiasts. The ASUS TUF Gaming X670E is loaded with premium features for enthusiasts, making it an ideal motherboard to be paired with the AMD Ryzen 7600X.

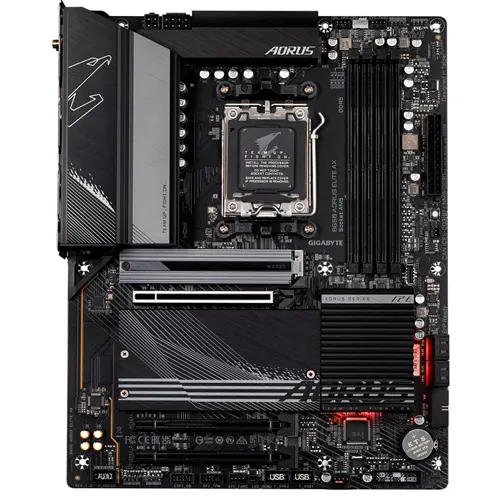

Gigabyte B650 AORUS Elite AX

The Gigabyte B650 AORUS Elite AX features a solid black PCB with patterned gray accents throughout the board itself as well as on the heatsink. The board features fully covered thick heatsinks which have the gigabyte AORUS branding over them. The heatsinks have a large surface area when compared to traditional heatsinks which allows them to dissipate heat rather quickly through the MOSFETs. The board itself has an ATX form factor which makes it suitable for ATX-sized cases and allows the motherboard to complement the case as well as looking aesthetic.

It is powered by a 24-pin ATX power connector and has 8+4 EPS power connectors which are utilized in order to power the CPU on the motherboard and allow some headroom for overclocking which is also possible thanks to the Twin 14+2+1 Digital VRM Design. The Gigabyte B650 AORUS ELITE AX supports the AMD5 socket which means that it is fully compatible with the AMD Ryzen 7000 series processors and makes it an appropriate choice for the AMD Ryzen 7600X processor.

The board has 4 memory DIMM slots that support XMP and provide dual channel support and can accommodate a total of 128GB of DDR5 memory with a memory frequency of 6600 MHz when overclocked. The board has a PCIe 5.0 x4 M.2 slot as well as two additional PCIe 4.0 X4 M.2 with thermal guards in order to allow lightning-fast speeds when paired with fast SSDs. The board has a single PCIe 4.0 X16 slot which is utilized for a dedicated graphics card as well as two additional PCIe 3.0 x1 slots.

The Gigabyte B650 AORUS Elite AX features support for the 802.11 ax WI-FI 6E which has a 6GHz band that allows for enhanced and seamless Wi-Fi connectivity and a lag-free experience when it comes to playing your favorite gaming titles online. It comes integrated with a 2.5G RJ-45 Ethernet port which provides excellent performance and ensures seamless online connectivity and a lag-free gaming experience. Q-Flash Plus is an additional feature that allows the BIOS to update in the absence of a CPU or even a graphics card. All in all, the B650 AORUS Elite AX is loaded with features, making it an ideal pick for the AMD Ryzen 7600X processors.

Gigabyte X670E AORUS Master

The Gigabyte X670E AORUS Master is an E-ATX form factor motherboard that is suitable for E-ATX-sized cases as both complement each other and look aesthetically clean. In terms of the overall theme of the motherboard, Gigabyte has decided to go along with a matte black and gray theme across the board with the AORUS branding over towards the heatsink over the rear IO. The IO area has a lighting outline of the AORUS Falcon as well as some RGB, the colors are not overly bright and look decent and classy overall. The motherboard supports AMD’s AM5 socket and is fully compatible with the AMD Ryzen 7000 series processor, hence making it the best motherboard for Ryzen 5 7600X processor.

The board features a beefy 20-phase power design which allows for optimal and smooth power delivery and provides overclocking headroom for overclocking enthusiasts. It also comes with an integrated HDMI 2.1 port which can utilize onboard video graphics to provide up to a stunning 4K of resolution and an additional DisplayPort 1.4 as well as a USB C (with support for DisplayPort 1.4).

In terms of USB ports, the motherboard features 1x USB 3.2 Gen 2 Type C, 1x USB 3.2 Gen 2×2 Type C, 4x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, and 2x USB 2.0 ports. The board comes equipped with a Gigabit RJ-45 Ethernet port which provides speeds up to 2.5Gbps. It also supports 802.11ax Wi-Fi 6E which is the next generation of wireless connectivity with lightning-fast Wi-Fi connectivity. In terms of audio solutions, the board has an inbuilt Realtek ALC1220 audio codec chipset which provides an immersive audio experience.

The board has PCIe 5.0 x4 M.2 slots for SSD as well as a single PCIe 5.0 X16 slot for dedicated graphic cards. The board has four memory DIMMS which accommodate a total of 128GB of DDR5 memory with XMP and dual channel support up to speeds of 6666Mhz. The board itself has excellent thermal cooling solutions as it is Nanocarbon Coated and has a Nanocarbon Aluminum backplate.  The Gigabyte X670E AORUS Master is loaded with premium features and would be a perfect pick for the AMD Ryzen 7600X.

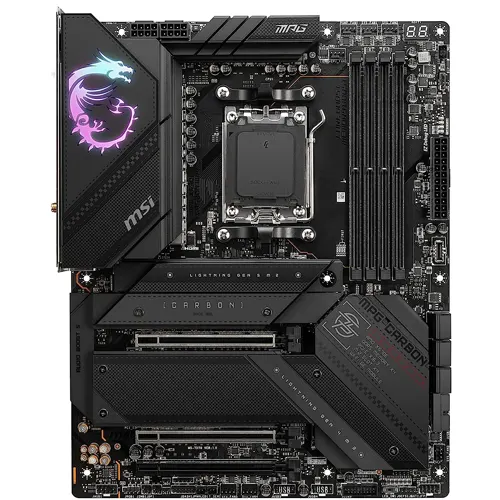

MSI MPG X670E Carbon Wi-Fi

The MSI MPG X670E Carbon Wi-Fi is a great motherboard to buy if you’re looking to pair it with the Ryzen 5 7600X. By buying this motherboard, it also allows headroom for CPU upgrades in the future such as the 7700X or 7900X. It is considered one of the best motherboards thanks to its great IO and being an “E” variant X670, it comes with PCIe 5.0 support for the graphics card and M.2 SSDs.

Performance-wise, it comes with an extended heatsink design which allows better heat dissipation and uses the best quality 7W/mK MOSFET thermal pads. Featuring an 8-layer PCB and great 18+2+1 VRM power phases rated at 90A, it’s safe to say that MSI did not compromise in the performance department for this board and you can rest assured that it can handle the extreme overclocking you throw at it. This board also features dual PCIe 5.0 slots that run at x16 and x4 for M.2 slots. Building using this PC is also a breeze due to friendly building design features such as screwless M.2 slots, clear CMOS and flash BIOS buttons.

There are also ample connectivity options such as USB ports, which support eight rear USB ports and an additional eight front USB ports. Moreover, it also has two USB 3.2 Gen 2 Type-C ports, one for the front and another for the rear. There is also an additional USB 3.2 Gen 2×2 Type-C port in the IO which provides extreme speeds of up to 20GB/s. This motherboard also comes with 2.5G LAN and Wi-Fi 6E for a seamless wired and wireless gaming experience. It also supports Bluetooth 5.2 for your Bluetooth peripherals. In the audio department, it uses a Realtek ALC4080 codec which is great but quite dated compared to what other competing motherboards are offering.

Aesthetic-wise, it has an attractive carbon black color theme with MSI’s dragon logo in RGB on its massive heatsink which can really make your PC stand out. It also comes with a control switch and debugging LED in case you run into any issues. This motherboard truly does not disappoint, it’s targeted for those that want pure and raw performance without any unnecessary premium features that may not be very deal-breaking.

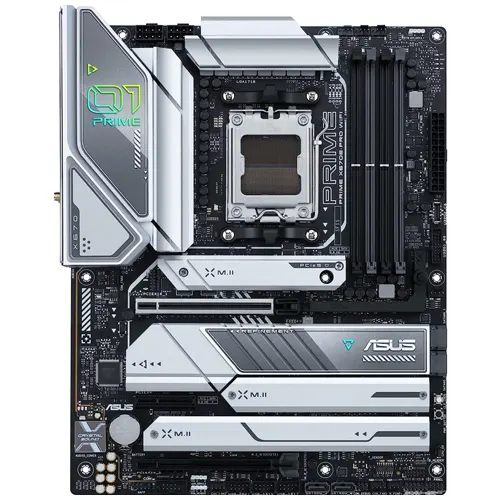

ASUS PRIME X670E-PRO WiFi

The Asus Prime X670-E Pro Wi-Fi motherboard is a solid motherboard choice for the new Ryzen 7000 CPUs. It is a black motherboard with silver accents with some slight RGB on the heat sink which can be a popular choice for those who are building a white or grey-themed PC. It has decent 14+2 power stages that are rated at 70A but for an Extreme variant of X670, it is inferior compared to other high-end variants which have 18+2+1 or 20+2 power solutions.

However, it has a cheaper price tag compared to the other variants but doesn’t compromise the features. It supports DDR5 RAM with speeds of more than 6400MHz and up to 128 GB of RAM and a total of four M.2 slots with heatsinks. Asus has also included Q-LED for debugging and a CPU over voltage jumper for overclocking. It also supports BIOS flashback for easy BIOS upgrades without needing a CPU.

It also has a PCIe 5.0×16 slot which features Asus’s proprietary SafeSlot and Q-Release which allows users to easily remove their graphics cards. Although there are four M.2 slots, only one supports PCIe 5.0×4. The other two support PCIe 4.0×4 and the fourth one supports PCIe 3.0×4. All M.2 slots support Q-Latch which allows users to install M.2 SSDs without any tools or screws. Additionally, it comes with four SATA III ports and overall allows a lot of flexibility and options for storage.

When it comes to building, it has plenty of fan headers, a total of eight to adapt to all varieties of cooling solutions and two 4-pin aRGB headers, and a single 3-pin RGB header. As far as connectivity is concerned, it is packed with a decent number of USB ports. It has overall ten rear USB ports and nine front USB ports that support a variety of USB variants such as USB 3.2 Gen2x2, USB 3.2 Gen2, and USB 3.2 Gen1 in both Type-A and Type-C ports. It also uses a Realtek 2.5 Gbps LAN and supports Wi-Fi 6E and Bluetooth 5.2.

For the audio department, Asus has included a high-end Realtek S1220A audio codec for this board and also includes DTX:X ultra-spatial audio.

Overall, it’s the best motherboard for Ryzen 5 7600X that does compromise on features while maintaining a reasonable price point.

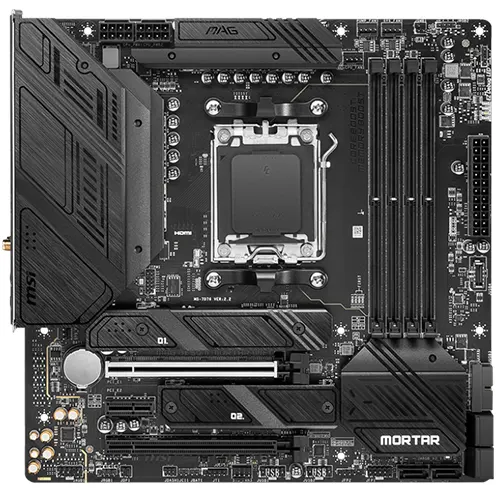

MSI MAG B650M Mortar Wi-Fi

The MSI MAG B650M Mortar Wi-Fi motherboard is a great micro-ATX motherboard and supports the latest AM5 Ryzen 7000 CPUs. It has a fully black aesthetic with a clean design and robust-looking VRM heatsinks. The materials and finishing of this motherboard are also pretty good and most of the important areas of the motherboard are covered by heatsinks It features a 6-layer PCB with a 12+2+1 duet rail system power stage and can even handle the Ryzen 9 7950X3D without running into issues. The B650M is a slightly trimmed-down version compared to the B650E and X670E but it does not disappoint.

This board does not support PCIe Gen 5 but it does support PCIe 4.0×16 but it does support DDR5 RAM because AM5 is DDR5 exclusively. It comes with four slots which can fit up to 128GB of RAM across the four slots. It also features a BIOS Flash button for upgrading the BIOS without any CPU. The PCIe slots are also reinforced with Steel Armor for strength and electromagnetic interference and are secured with extra solder points to support graphics cards that are heavy.

Connectivity options are great in this motherboard. It features Realtek RTL8125B 2.5Gbps LAN, Wi-Fi 6E, and Bluetooth 5.2 along with eight USB ports on the back, one of which is a Type-C port that supports speeds up to 20Gb/s. Micro-ATX boards typically have limited USB options but it’s great to see that this motherboard comes with plenty. Coming to the audio, it has a 7.1 ALC4080 codec which is pretty decent for this motherboard.

Storage options are also plenty with two M.2 NVMe slots and six SATA ports. The M.2 also has retention EZ M.2 clips which allow you to install M.2 SSDs without any tools. It also comes with M.2 Frozr shields that cool and protect the NVMe drives which can be considered a premium feature as many cheaper motherboards leave the M.2 slots exposed. For the RGB fans, there are two 4-pin addressable RGB headers and two 3-pin RGB LED headers along with plenty of fan headers for cooling solutions.

Overall, a very solid motherboard with a balanced set of features for the price point if you’re looking to pair it with the Ryzen 5 7600X.

MSI MEG X670E ACE

The MSI MEG X670E is a motherboard with great aesthetics and performance, second to the very expensive MEG X670E Godlike which costs almost twice the price. This motherboard comes with an extensive set of features that justifies its price tag.

The MSI X670E ACE is an E-ATX motherboard with a fully covered back plate with a very attractive design, although the lack of RGB is a gold accented black exterior with MSI’s dragon logo. As an Extreme variant motherboard, it comes with everything you would expect for the AM5 platform such as PCIe 5.0 support for graphics cards and M.2 NVMe SSDs. Build quality and performance-wise, it is an 8-layer board with 2oz copper traces along with a flagship VRM design with a 22+2+1 duet rail power system rated at 90A power stages to push the performance and enable easy overclocking.

It has a total of three PCIe 5.0 slots being an E-ATX motherboard along with three M.2 slots, one of which supports PCIe 5.0×4 while the other two are PCIe 4.0×4. It also features four DDR5 RAM slots which support speeds of 6600+ and up to 128GB total capacity. AMD’s two-way Crossfire Technology supports more than one graphics card. Six SATA ports are also available for storage and additional M.2 slots can be installed using the Expander M.2 AIC.

To keep this beast of a motherboard cool, it has a stacked fin array design and two MOS heatsinks along with a double-sided M.2 Shield Frozr. Additionally, it uses high-quality 7W/mK thermal pads to ensure maximum cooling in order to push out the best performance and can handle the top-of-the-line Ryzen 7000 series CPUs such as the 7950X or the 7950X3D without running into any problems.

Connectivity-wise, it comes with eleven USB ports on the rear IO and one of the best audio codecs, the Realtek ALC4082. Additionally, it supports 10 GbE ethernet and Wi-Fi 6E, and Bluetooth 5.2. Additional features such as a smart button and BIOS flashback. For RGB, there are three 3-pin addressable RGB headers along with multiple fan headers around the motherboard for the fans.

Overall, this board is a spectacular choice with all the features and performance you need without being as expensive as the MEG X670E Godlike.
